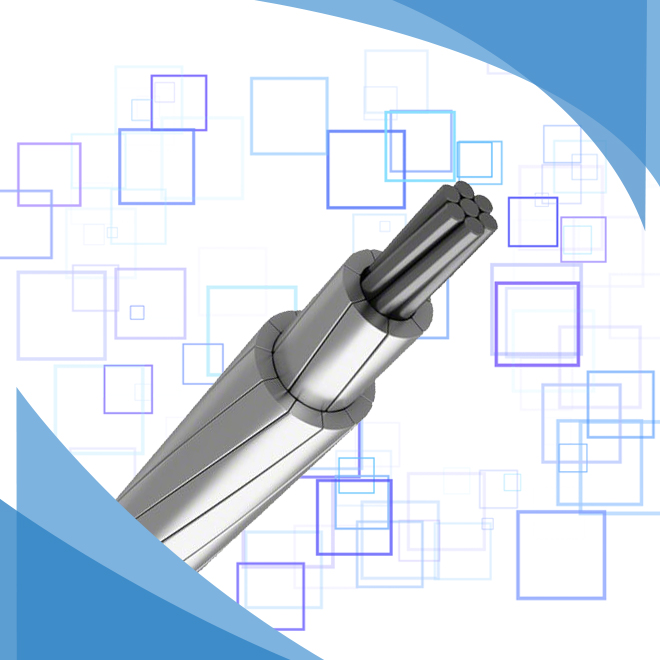

ACSR/TW

Aluminum Conductor Steel Reinforced Trapezoidal Shaped Aluminum Strands

Application:Used as a bare overhead conductor. There are two designs of ACSR/TW. One design gives an equal area of aluminium when compared to the standard ACSR conductor sizes. The other design gives an overall outside diameter equal to standard ACSR conductor sizes. Use of this conductor in the equal area design allows equal ampacity in a smaller diameter conductor when compared with standard ACSR conductor. Use of this conductor in the equal diameter design allows more ampacity in an equal diameter conductor when compared with standard ACSR conductor.

Constructions:

Aluminum 1350-H19 trapezoidal-shaped wires, concentrically stranded about a steel core. Standard core wire coating for

ACSR is Class A galvanized (GA2).

Also available in zinc-5% aluminum-mischmetal alloy coating or aluminum-clad (AW)

Additional corrosion protection is available through the application of grease to the core or complete conductor.

Also available in non-specular.

ACSR-TW 1.jpg

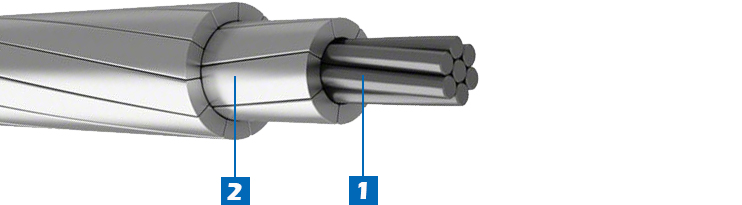

1. Galvanized Steel Wire Class A, Class B & Class C

2. T shaped Aluminum wires 1350-H19

Standards:

ASTM B230 Aluminum 1350-H19 Wire for Electrical Purposes

ASTM B498 Zinc-Coated (Galvanized) Steel Core Wire for Use in Overhead Electrical Conductors

ASTM B500 Metallic Coated or Aluminum Clad Stranded Steel Core for Use in Overhead Electrical Conductors

ASTM B779 Shaped Wire Compact Concentric-Lay-Stranded Aluminum Conductors, Steel-Reinforced (ACSR/TW)

Packing:

Non-returnable wood drums, wood drums steel frame reinforced or steel drums as per request

Length Tolerance per drum ± 2%

Please contact engineer for full specifications and offers
