Adaptable Voltage

3.6/6 (7.2) kV, 6/10 (12) kV, 8.7/15 (17.5) kV, 12/20 (24) kV, 18/30 (36) kV

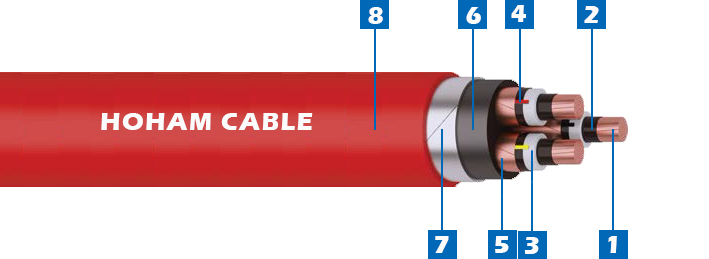

Constructions:

The cable is formed by one or three copper conductors with XLPE insulation and screens from triple-layer extrusion on CCV line, assembled in round cable after screened with copper tape, then armored with helically wrapped steel tape and covered by PVC outer sheath.

1. Conductor

Quantity: 1 core or 3 cores

Size: 50-800mm² for 1 core, 50-400mm² for 3 cores

Condition: concentrically stranded conductors, compacted

Material: Annealed Copper

2. Conductor Screen

3. Insulation

Condition: Extruded thermoplastic compound

Material: XLPE

Core identification: colored ID tape or printed numbers as per requirement

4. Insulation Screen

5. Metallic Screen

Condition: helical wrapped tape

Material: copper tape

6. Inner Sheath

Condition: Extruded thermoplastic compound

Material: PVC

7. Armoring

Condition: helical wrapped steel tape

Material: single or double layer of galvanized steel tape

8. Outer Sheath

Condition: Extruded thermoplastic compound

Material: PVC

Color and Marking on surface of cable to be specified by customer.

Standards Applicable:

IEC 60502-2

ICEA S-93-639

SANS 1339

Or other standards on customer’s request

Packing:

Non-returnable wood drums, wood drums steel frame reinforced or steel drums as per request

Length Tolerance per drum ± 2%

Please contact engineer for full specifications and offers.
