Adaptable Voltage
3.6/6 (7.2) kV, 6/10 (12) kV, 8.7/15 (17.5) kV, 12/20 (24) kV, 18/30 (36) kV

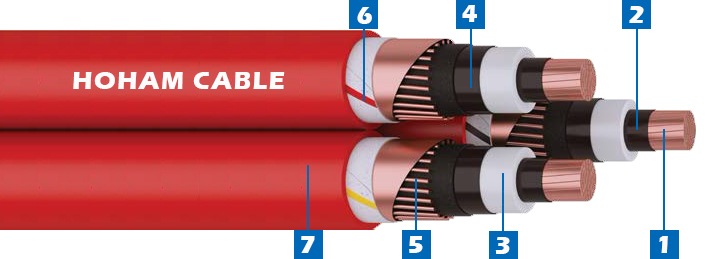

Constructions:
The cable is formed by one copper conductor with XLPE insulation and screens from triple-layer extrusion on CCV line, screened with copper wires, then covered by PVC outer sheath as one core. Three cores will be twisted together right-handed.
1. Conductor
Size: 35-300mm2
Condition: concentrically stranded conductors, compacted
Material: Annealed copper
2. Conductor Screen
3. Insulation
Condition: Extruded thermoplastic compound
Material: XLPE
Core identification: colored ID tape or printed numbers as per requirement
4. Insulation Screen
5. Metallic Screen
Condition: helical wrapped wires and copper banding tape
Material: copper wires and tape
6. Binding Tape
7. Sheath
Condition: Extruded thermoplastic compound
Material: PVC
Color and Marking on surface of cable to be specified by customer.
Standards Applicable:
IEC 60502-2
ICEA S-93-639
SANS 1339
Or other standards on customer’s request
Packing:
Non-returnable wood drums, wood drums steel frame reinforced or steel drums as per request
Length Tolerance per drum ± 2%
Please contact engineer for full specifications and offers.
