Constructions:

Super Thermal Resistant Aluminium Alloy Conductor Aluminium-Clad Invar Reinforced (STACIR/AW) consists of one or more layers of S-TAL Grade Aluminum-Zirconium wires AT3, concentrically stranded about a steel core. Steel Core wire for STACIR/AW is available with aluminum-clad Invar Wires (Ni-Fe Alloy) wires (AW). Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.

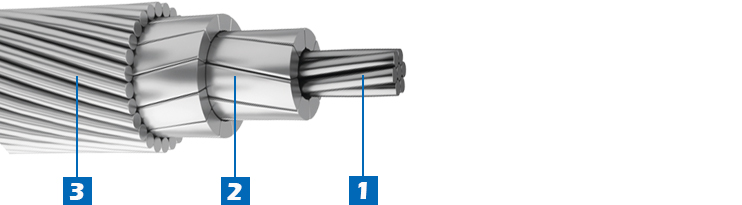

1. Aluminum-clad invar steel wires

2. T shaped High thermal alloy wires

3. Round type High thermal alloy wires

Standards:

Super Thermal-resistant aluminium alloy wire for overhead line conductor IEC 62004

Round wire concentric lay overhead electrical stranded conductors IEC 61089

Aluminium-clad steel wires for electrical purposes IEC 1232

Maintaining the mechanical strength of the conductor with continuous operating temperature up to 210°C

Can carry 100~150% more current as that of ACSR of the same size. Mechanical properties (diameter, strength, weight) very similar to ACSR conductors

For uprating lines, no modifications or reinforcement is required to the existing towers

Easy installation, using the same installation method of standard ACSR conductors

Packing:

Non-returnable wood drums, wood drums steel frame reinforced or steel drums as per request

Length Tolerance per drum ± 2%
