0.6/1kV AL/XLPE/SWA/PVC

Aluminum Conductor, XLPE Insulated, Steel Wire Armor, PVC Sheathed

Constructions:

The cable is formed by aluminum cores that insulated by extruded PVC, assembled in round cable, armored with concentrically wrapped steel wires and covered by PVC outer sheath.

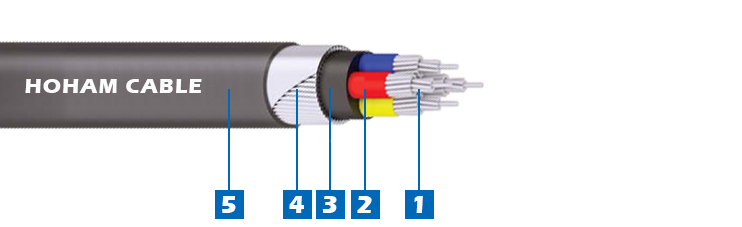

4 0.6-1V Al-XLPE-SWA-PVC 1.jpg


1. Conductor

Size: 16--630mm2

Quantity: 1 core, 2 cores, 3 cores, 4 cores, 4+1 cores, 5 cores

Condition: concentrically stranded conductors, round and sector shape available

Material: Aluminum H-19

2. Insulation

Condition: Extruded thermoplastic compound

Material: PVC

Core identification: color code or printed numbers as per requirement

3. Inner Sheath

Condition: Extruded thermoplastic compound

Material: PVC

4. Armoring

Condition: concentrically wrapped steel wires

Material: galvanized steel wires

5. Outer Sheath

Condition: Extruded thermoplastic compound

Material: PVC

Color and Marking on surface of cable to be specified by customer.



Standards Applicable:

IEC 60502-1

ICEA S-95-658

Or other standards on customer’s request



Packing:

Non-returnable wood drums, wood drums steel frame reinforced or steel drums as per request

Length Tolerance per drum ± 2%



Please contact engineer for full specifications and offers.
