Constructions:

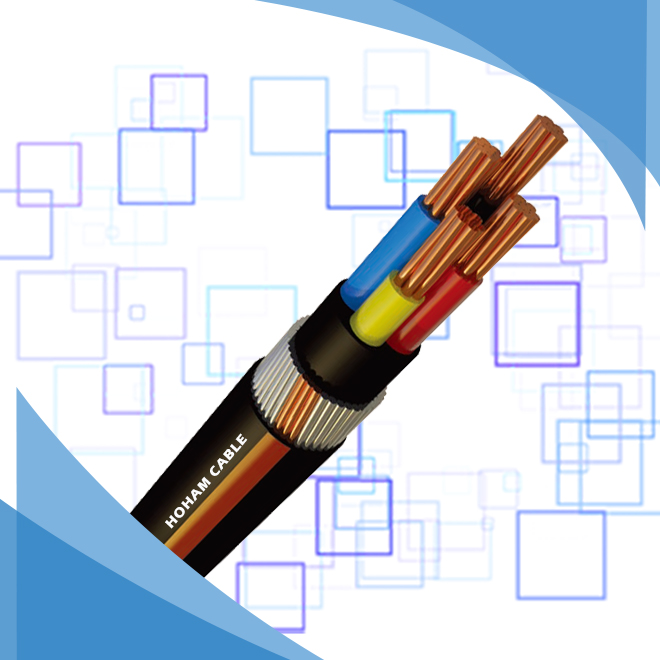

The cable is formed by copper cores that insulated by extruded PVC, assembled in round cable, armored with concentrically wrapped steel wires and copper wires as earth continuity conductor, covered by PVC outer sheath.

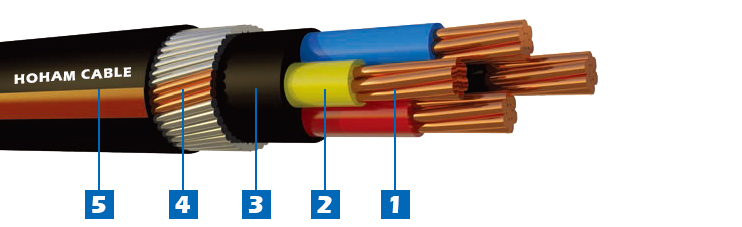

1. Conductor

Size: 16--630mm²

Quantity: 1 core, 2 cores, 3 cores, 4 cores, 4+1 cores, 5 cores

Condition: concentrically stranded conductors, round and sector shape available

Material: Annealed Copper

2. Insulation

Condition: Extruded thermoplastic compound

Material: XLPE (PVC insulation available on request)

Core identification: color code or printed numbers as per requirement

3. Filler

Condition: Extruded thermoplastic compound

Material: PVC

4. Armoring+ Earth Continuity Conductors

Condition: concentrically wrapped wires

Material: galvanized steel wires and copper wires

5. Sheath

Condition: Extruded thermoplastic compound

Material: PVC

Color and Marking on surface of cable to be specified by customer.

Standards Applicable:

IEC 60502-1

ICEA S-95-658

Or other standards on customer’s request

Packing:

Non-returnable wood drums, wood drums steel frame reinforced or steel drums as per request

Length Tolerance per drum ± 2%

Please contact engineer for full specifications and offers.
