Constructions:

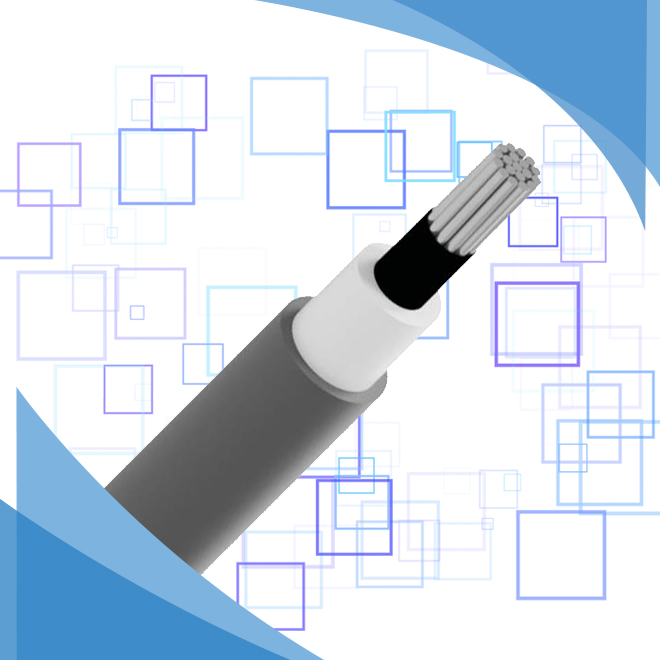

Tree Wire consist of a concentrically stranded conductor and multi-layers of insulation. The conductor can be AAC(aluminum 1350-H19), AAAC(aluminum alloy 6201-T81) or ACSR. The insulation with option of 2 layers or 3 layers.

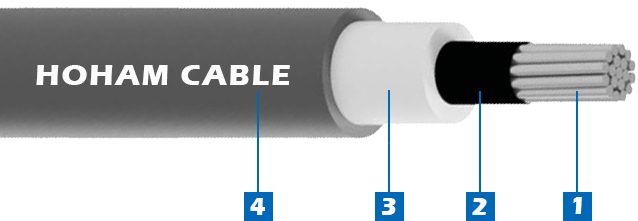

1. Conductor

Condition: concentrically stranded aluminum conductors, compact and uncompact available

Material: AAC(Aluminum 1350-H19) in most scenario. Aluminum Alloy(6201-T81) or ACSR

2. Conductor Shield

3. Insulation-inner layer

Condition: Extruded thermoplastic compound

Material: XLPE

4. Insulation-outer layer

Condition: Extruded thermoplastic compound

Material: XLPE, LDPE or HDPE

Color and Marking on surface of cable to be specified by customer.

Standards Applicable:

ICEA S-121-733

ICEA S -66-524

ICEA S -61-402

Packing:

Non-returnable wood drums, wood drums steel frame reinforced or steel drums as per request

Length Tolerance per drum ± 2%

Please contact engineer for full specifications and offers.
