Constructions:

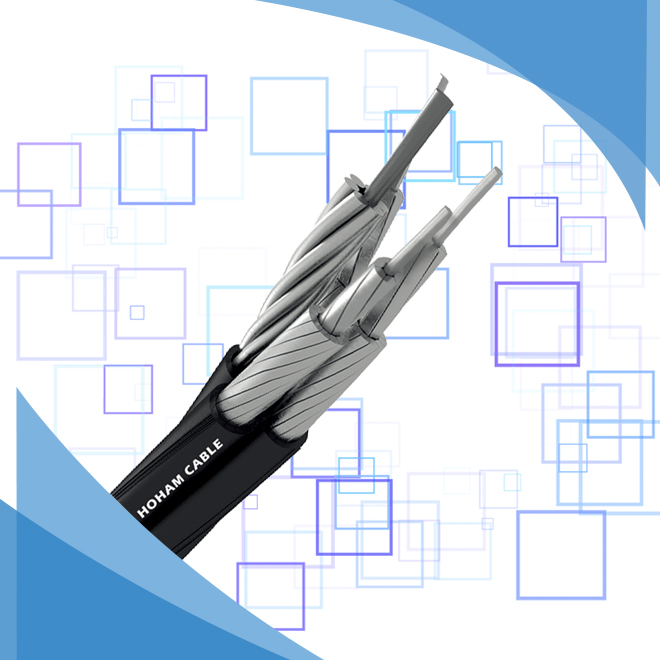

Quadruplex insulated conductors consist of three insulated phase conductors twisted around one neutral conductor, the neutral conductor can be insulated or bare on customer’s request. The cables are twisted together to form a quadruplex assembly.

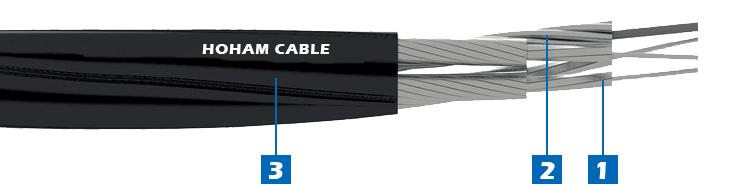

1. Conductor of Phase Core

Condition: concentrically stranded aluminum conductors, compact and uncompact available

Material: AAC(Aluminum 1350-H19) in most scenario. Aluminum Alloy(6201-T81) or Aluminum Alloy 8000 series available on request

2. Conductor of Neutral Core

Condition: concentrically stranded conductors, uncompact

Material: AAC(Aluminum 1350-H19), AAAC(Aluminum Alloy 6201-T81) or ACSR as per requirement

 3. Insulation

Material: XLPE, HDPE, LDPE or PVC on request, UV resistant

Core identification: color strips, printed numbers or extruded ribs as per requirement

Standards Applicable:

IEC 60502-1

ICEA S-76-474

ICEA S-95-658

SANS 1418-2

NF C 33-209

Packing:

Non-returnable wood drums, wood drums steel frame reinforced or steel drums as per request

Length Tolerance per drum ± 2%

Please contact engineer for full specifications and offers.
