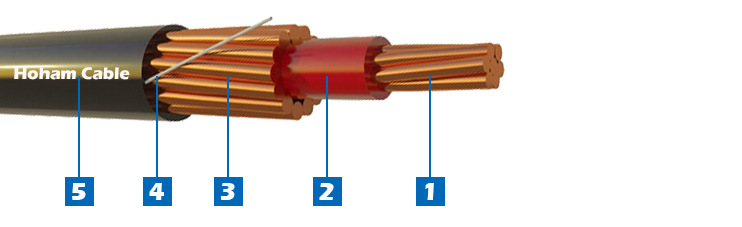

Constructions:

Stranded hard drawn copper phase conductor, XLPE insulated with bare neutral earth conductors. Polyethylene sheathed house service cable. Nylon ripcord laid under sheath.

1. Conductor of Phase Core

Size: 10mm² or 16mm²

Condition: concentrically stranded conductor

Material: Hard drawn copper

2. Insulation

Condition: Extruded chemical compound

Material: XLPE

3. Concentric wires

Condition: helical concentric wires

Material: bare copper wires as neutral conductor

4. Ripcord

Material: Nylon wire

5. Sheath

Condition: Extruded chemical compound

Material: PE or PVC

Marking on surface of cable to be specified by customer.

Standards Applicable:

SANS 1507-6--- Electric cables with extruded solid dielectric insulation for fixed installations (300/500 V to 1 900/3 300 V) Part 6: Service cables

Benefits:

Small overall diameter - concentric construction

Lower mass - due to smaller diameter - no steel wire armour

Increased safety - reliable earthing

Improved reliability - UV stable sheath and core insulation

Tamper and vandal proof - unauthorised access to phase conductor inhibited by concentric layer

Easy strip with nylon ripcord

Properties

Temperature Range: -10°C to 105°C

Voltage Rating: 300 / 500V

Core Identification: White, Yellow, Black, Brown, Red, Orange, Tan, Light Blue and White with a choice of either Yellow,Orange, Red, Black, Blue or BrownStripes

Packing:

Non-returnable wood drums, wood drums steel frame reinforced or steel drums as per request

Length Tolerance per drum ± 2%

Please contact engineer for full specifications and offers.
