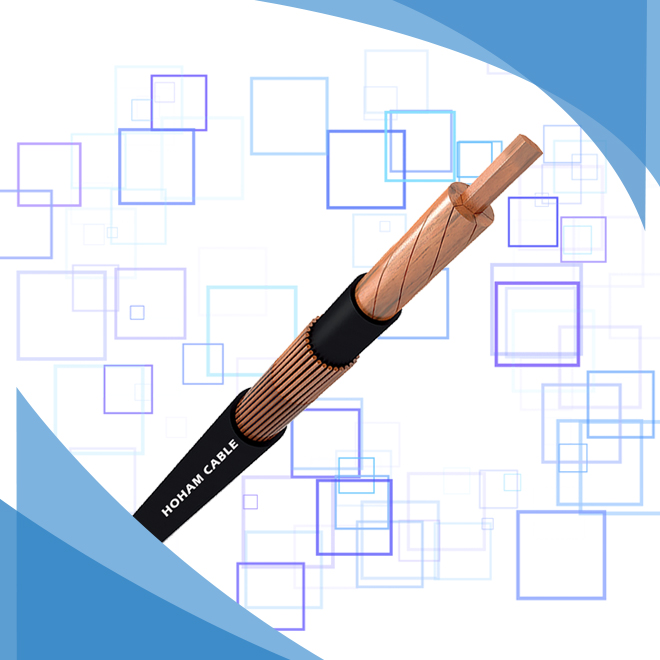

Copper Core Single Phase Concentric cable

Copper Core Single Phase Concentric cable

Constructions:

Copper Core Single Phase Concentric cable formed by one phase core of insulated copper conductor, and one neutral core of concentric conductor. The concentric copper wires are arranged in a helical shape around the phase core and covered by thermoplastic sheath.

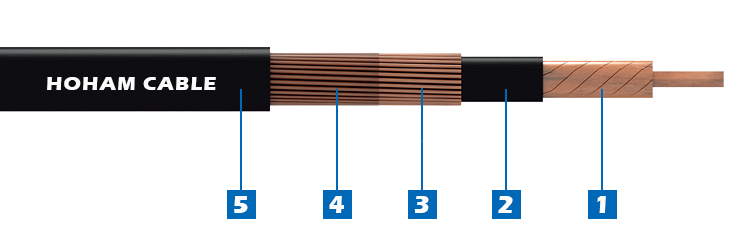

4 Copper Core Single Phase Concentric cable   1.jpg



1. Conductor of Phase Core

Condition: concentrically stranded conductor, compact and uncompact available

Material: Soft copper

2. Insulation

Condition: Extruded chemical compound

Material: XLPE, HDPE, LDPE or PVC on request,

Core identification: color code, printed numbers as per requirement

3. Neutral Core of concentric wires

Condition: helical concentric wires

Material: Soft copper

4. Separator

Condition: longitudinal wrapped tapes

Material: Polyester tape, Non-woven fabrics, Fiber glass tape or any other kind of tape on customer’s request

5. Sheath

Condition: Extruded chemical compound

Material: PVC, HDPE, or LDPE on request,

Marking on surface of cable to be specified by customer.



Standards Applicable:

ICEA S-95-658

ICEA S-66-524

UL 854

IEC 60502-1



Packing:

Non-returnable wood drums, wood drums steel frame reinforced or steel drums as per request

Length Tolerance per drum ± 2%



Please contact engineer for full specifications and offers.
