Constructions:

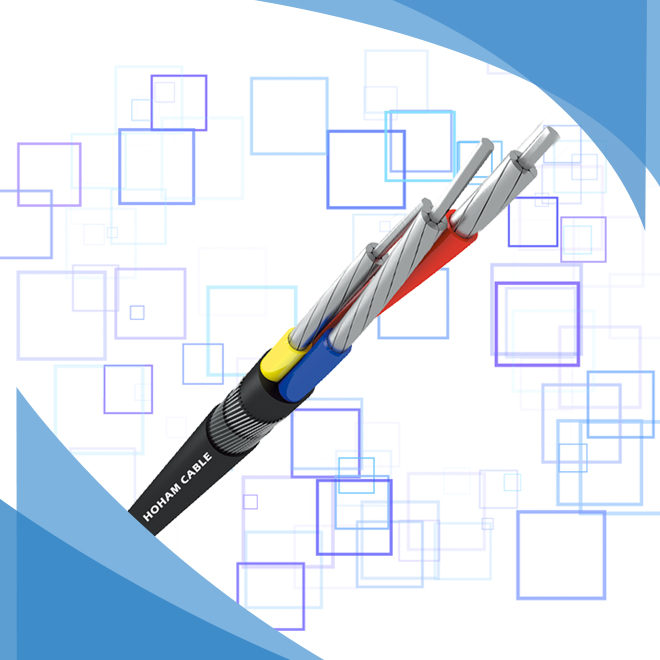

Aluminum Core 3 Phase Concentric cable formed by three phase cores of insulated aluminum conductor, and one neutral core of concentric conductor. The concentric aluminum wires are arranged in a helical shape around the phase core and covered by thermoplastic sheath.

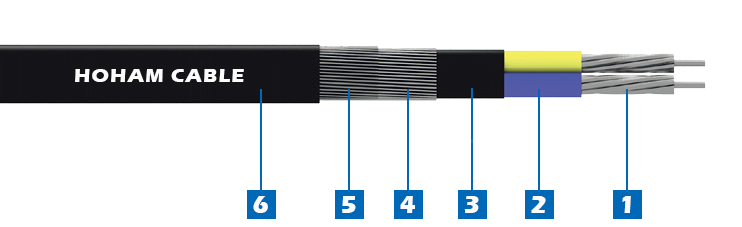

1. Conductor of Phase Core

Condition: concentrically stranded conductors, compact and uncompact available

Material: AAC(Aluminum 1350-H19) in most scenario. Aluminum Alloy(6201-T81) or Aluminum Alloy 8000 series available on request

2. Insulation

Condition: Extruded chemical compound

Material: XLPE, HDPE, LDPE or PVC on request,

Core identification: color code, printed numbers as per requirement

3. Inner Sheath

Condition: Extruded chemical compound

Material: PVC

4. Neutral Core of concentric wires

Condition: helical concentric wires

Material: Aluminum 1350-H19 , Aluminum Alloy 6201-T81 or Aluminum Alloy 8000series as per requirement

5. Separator

Condition: longitudinal wrapped tapes

Material: Polyester tape, Non-woven fabrics, Fiber glass tape or any other kind of tape on customer’s request

6. Sheath

Condition: Extruded chemical compound

Material: PVC, HDPE, or LDPE on request

Marking on surface of cable to be specified by customer.

Standards Applicable:

ICEA S-95-658

ICEA S-66-524

UL 854

IEC 60502-1

Packing:

Non-returnable wood drums, wood drums steel frame reinforced or steel drums as per request

Length Tolerance per drum ± 2%

Please contact engineer for full specifications and offers.
