Constructions:

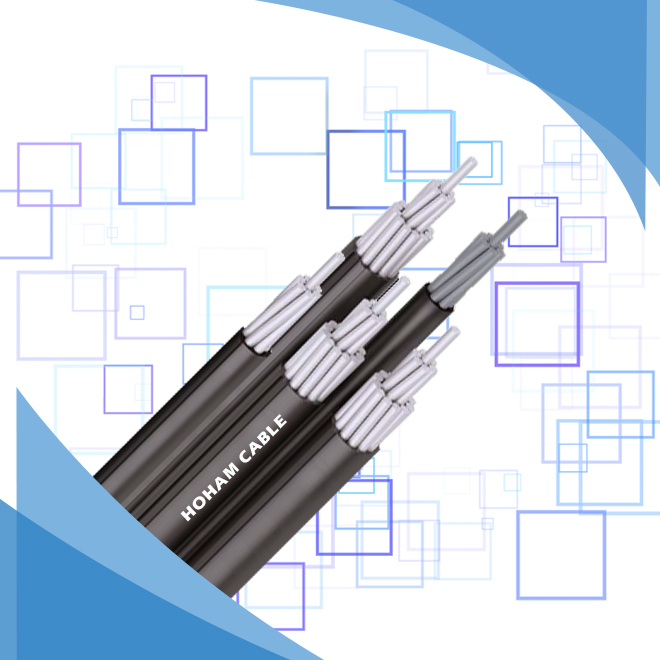

CAAI-S cable consisted of one or two or three phase conductors(aluminum 1350-H19) pluse one or two lighting conductors(aluminum 1350 H-19), concentrically stranded around the insulated neutral conductor(galvanized steel strand).

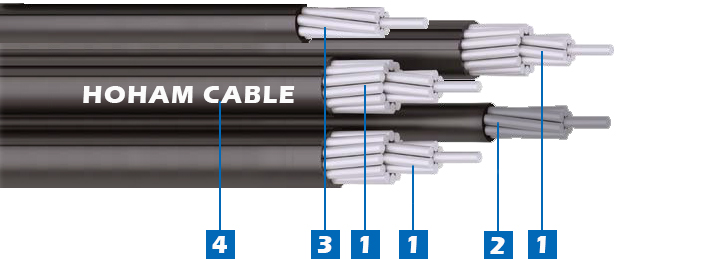

1. Conductor of Phase Core

Condition: concentrically stranded aluminum conductors, compact and uncompact available

Material: AAC(Aluminum 1350-H19)

2. Conductor of Neutral(Supporting) Core

Condition: concentrically stranded conductors, uncompact

Material: Galvanized steel cable

3. Conductor of Lighting Core

Condition: concentrically stranded aluminum conductors, compact and uncompact available

Material: AAC(Aluminum 1350-H19)

4. Insulation

Material: XLPE, HDPE, LDPE or PVC on request, weather resistant

Core identification: color strips, printed numbers or extruded ribs as per requirement

Standards Applicable:

NTP 370.254

ICEA S-76-474

Packing:

Non-returnable wood drums, wood drums steel frame reinforced or steel drums as per request

Length Tolerance per drum ± 2%

Please contact engineer for full specifications and offers.
