Constructions:

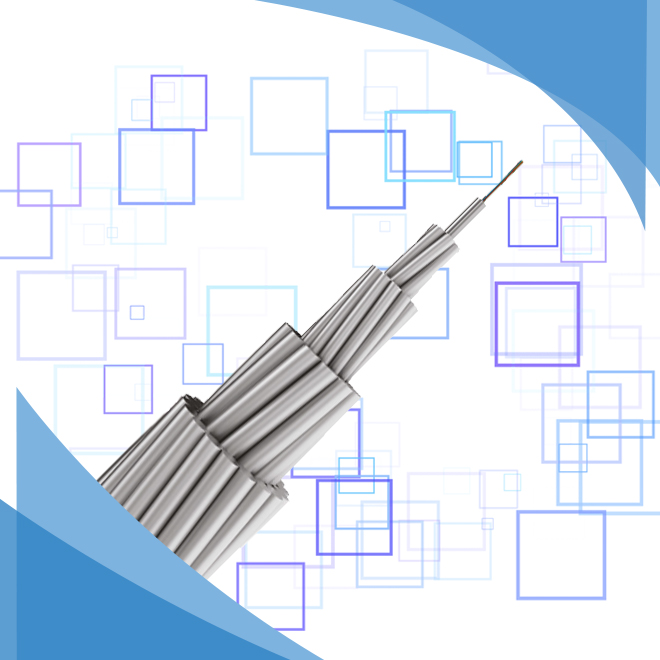

The conductor is consist of 1350-H19 aluminum wires, 6201-T81 aluminum alloy wires and aluminum-clad steel wires concentrically stranded around a central stainless steel tube with optical fibers inside.

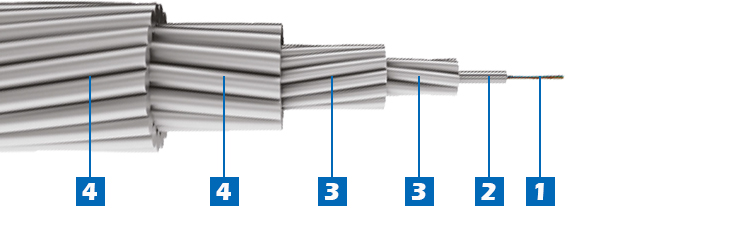

1. Optical fiber

2. Stainless steel tube

3. Aluminum-clad steel wire

4. Aluminum alloy wire or aluminum wire

Features

A. Up to 288 fibers

B. ACS wires are highly corrosion-resistant

C. Effective solution to provide redundancy in harsh conditions, such as long cable spans, crossings of cable spans, power lines with previously installed OPGW and ADSS and others

Standards:

ITU-TG.652 Characteristics of a single mode optical fiber.

ITU-TG.655 Characteristics of a non-zero dispersion -shifted single mode fibers optical.

EIA/TIA598 B Col code of fiber optic cables.

IEC 60794-4-10 Aerial optical cables along electrical power lines-family specification for OPGW.

IEC 60794-1-2 Optical fiber cables -part test procedures.

IEEE1138-2009 IEEE Standard for testing and performance for optical ground wire for use on electric utility power lines.

IEC 61232 Aluminum -Clad steel wire for electrical purposes.

IEC 60104 Aluminum magnesium silicon alloy wire for overhead line conductors.

IEC 6108 Round wire concentric lay overhead electrical stranded conductors.

Packing:

Non-returnable wood drums, wood drums steel frame reinforced or steel drums as per request

Length Tolerance per drum ± 2%

Please contact engineer for full specifications and offers.
