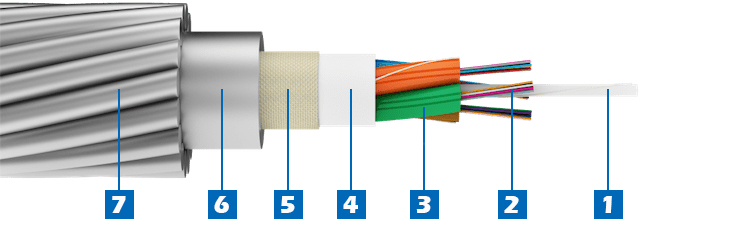

Constructions:

The conductor is consist of aluminum-clad steel wires / 6201-T81 aluminum alloy wires concentrically stranded around a central aluminum tube with optical fibers inside.

1. Central strength member (FRP)

2. Optical fiber

3. PBT loose tubes filled with water-blocking gel

4. Water-swellable tape

5. Thermal barrier

6. Aluminum pipe

7. Aluminum-clad steel wire and/or aluminum alloy wires

Features

A. Up to 144 fibers

B. Highly corrosionresistant: ACS wires and aluminum pipe

C. Convenient splice preparation

D. Optical ground wire (OPGW) shields high voltage conductors from lightning strikes

E. Aluminum alloy wires provide conductivity for fault current

Standards:

ITU-TG.652 Characteristics of a single mode optical fiber.

ITU-TG.655 Characteristics of a non-zero dispersion -shifted single mode fibers optical.

EIA/TIA598 B Col code of fiber optic cables.

IEC 60794-4-10 Aerial optical cables along electrical power lines-family specification for OPGW.

IEC 60794-1-2 Optical fiber cables -part test procedures.

IEEE1138-2009 IEEE Standard for testing and performance for optical ground wire for use on electric utility power lines.

IEC 61232 Aluminum -Clad steel wire for electrical purposes.

IEC 60104 Aluminum magnesium silicon alloy wire for overhead line conductors.

IEC 6108 Round wire concentric lay overhead electrical stranded conductors.

Packing:

Non-returnable wood drums, wood drums steel frame reinforced or steel drums as per request

Length Tolerance per drum ± 2%

Please contact engineer for full specifications and offers.
