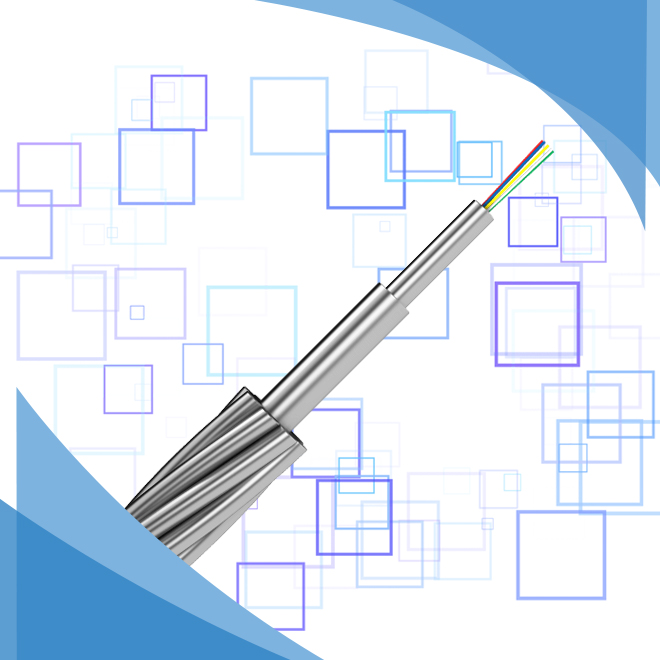

Optical Ground Wire Central Aluminum-Clad Loose Tube

Optical Ground Wire Central Aluminum-Clad Loose Tube

Constructions:

The conductor is consist of aluminum-clad steel wires / 6201-T81 aluminum alloy wires concentrically stranded around a central aluminum-clad stainless steel tube with optical fibers inside.

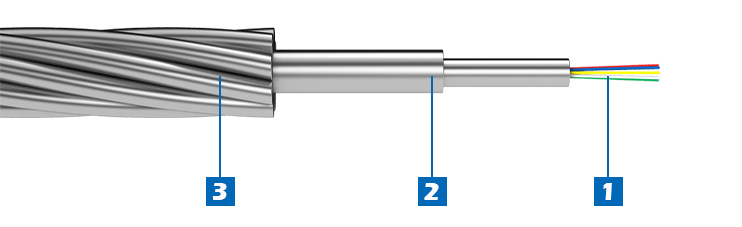

2 Optical Ground Wire Central Aluminum-Clad Loose Tube 1.jpg

1. Optical fiber

2. Aluminum-clad stainless steel tube filled with water-blocking gel

3. Stranded wires (aluminum-clad steel wires and/or aluminum alloy wires)



Features

A. Up to 96 fibers

B. Enhanced corrosion resistance: ACS wires and aluminum-clad stainless steel tube

C. Optical ground wire (OPGW) shields high voltage conductors from lightning strikes

D. Aluminum alloy wires provide conductivity for fault current



Standards:

ITU-TG.652 Characteristics of a single mode optical fiber.

ITU-TG.655 Characteristics of a non-zero dispersion -shifted single mode fibers optical.

EIA/TIA598 B Col code of fiber optic cables.

IEC 60794-4-10 Aerial optical cables along electrical power lines-family specification for OPGW.

IEC 60794-1-2 Optical fiber cables -part test procedures.

IEEE1138-2009 IEEE Standard for testing and performance for optical ground wire for use on electric utility power lines.

IEC 61232 Aluminum -Clad steel wire for electrical purposes.

IEC 60104 Aluminum magnesium silicon alloy wire for overhead line conductors.

IEC 6108 Round wire concentric lay overhead electrical stranded conductors.



Packing:

Non-returnable wood drums, wood drums steel frame reinforced or steel drums as per request

Length Tolerance per drum ± 2%



Please contact engineer for full specifications and offers.
